SCALEWAY : SCALE-OUT NAS SG1000

Data Storage
SCALEWAY - NAS

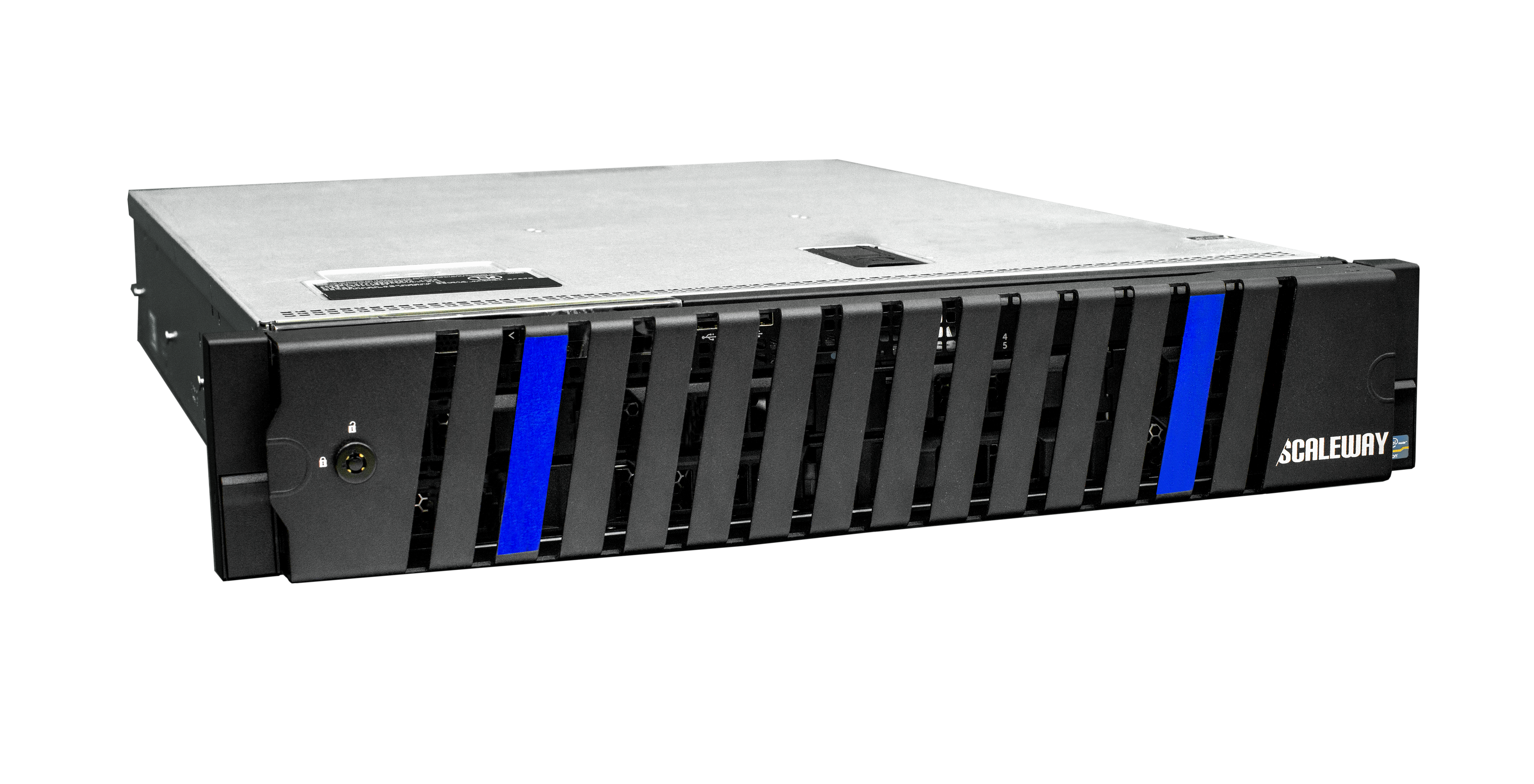

SG1000-UF

SG1000-UF

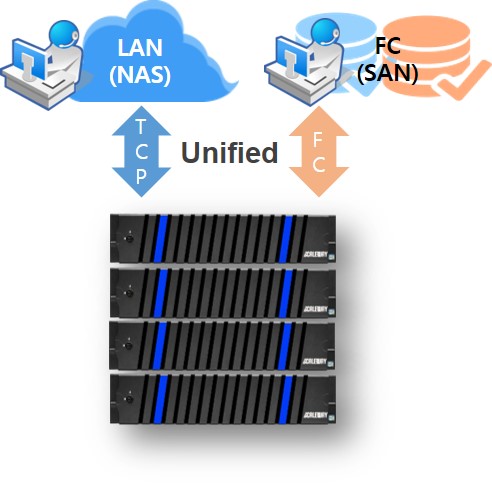

SG1000-UF is the Unified Storage that supports both SAN and NAS.

Key Advantages

·Supports both of SAN and NAS

·Volumne can be configured for user by storage virtualization

·Supports up to 8PB on a single volumne (Multi-volume can be configured)

·Easy yo extend and cost saving

·Easy to user Web based GUI (Graphic User Interface)

·Supporst OntopView, Snapshot, Replication, Transfer Agent, Load Balancer

FlexibleScalability

·Supports up to 8PB on a Single Volume (Multi-Volume can be configured)

·Supports user-friendly volume configuration with built-in Storage Virtualization

·Cost-saving with scalable configuration of storage capacity utilizing Thin-Provisioning

Compatibility

·NAS

Supports various protocols such as TCP/IP,DHCP, NFS, CIFS, AFP, NDMP, SNMP, ISCSI,FTP, HTTP, Telnet, Like Wise, WebDev

·SAN

8/16Gb FC Interface

HighAvailabilitiy

·Redundant all components ensures continuity of service under any circumstances

·Large capacity expansion, Quick Search,Backup/Restore, Clone

·Supports intelligent Load-Balancing,Dynamic Thin-Provisioning

HighPerformance/LargeCapacity

·Provides high performance by integrating large capacity of data

·Designed to scale to PetaByte size in a single Global Name-space

Responseaccordingtobusinessenvironment

·Canbeusedforallbusinessdatatype

·Flexible reponse to changes in user's business environment

FreeSoftwareSolutions

·Convinience Management Tool with Webbased GUI(Graphic User Interface) : OnTopView

·Support for logical recovery of storage : SnapShot

·To enable remote archiving of data : Replication

Application Fileds

·Digital media / Broadcasting

·DatabaseApplicatioin

·WebApplication

·GridApplication

·Cloud Computing

·Big Data

**System specifications**
HARDWARE	Standard Configuration	Active / Active, Default 2nodes / Max. over 1,000 nodes
	Processor	Intel Xeon multi-core processor (Max. 2 CPU)
	Memory
NAS	LAN Connectivity	1GbE x 4or 10GbE x 2 GbE, 10GbE, iSCSI, Myrinet, IB, HPS Supports
SAN	Fibre Connectivity	Dual Fibre Channel Ports (4/8/16 Gbps Optical - LC Type) Option(Quad Port)
MANAGEMENT	Clustering Managemen	Client Load Balancing Manager, Concurrent Cluster File System Manager
	File I/O Management	File Access & Block Level Locking Manager, Token Manager Automatic
	Availability Management	Journaling(Logging) of Metadata Manager, Physical & Logical Volume Manager
Volume	1 Volume	Max.8YB (NAS)
	Marking File	File creation per filesystem (4,000,000,000 per filesystem)
	Marking Block Size	4KB- 1024KB
	Snapshot
	Replication	Yes (Default Service)
SUPPORT	SAN FC Switch	Brocade, Cisco, Qlogic etc.
	Storage	Standard FC Type
	Operating System	Windows NT/2003, Unix, Linux, Apple, etc.
	Protocol	TCP/IP, DHCP, NFS, CIFS, AFP, NDMP, SNMP, FTP, HTTP, Telnet, Like Wise, WebDev, AD(Active Directory), LDAP(Lightweight DirectoryAccess Protocol), iSCSI
